官方文档: Type Encodings
本质上就是一个把返回值, 入参, 入参地址,入参大小. 用缩写, 描述成字符串的实现
我们编译一个类的函数后, 会见到
Test.cpp
具体结构体分析见: 其他: Clang 编译后的数据结构分析
struct _objc_method {
struct objc_selector * _cmd;
const char *method_type;
void *_imp;
}
static struct /*_method_list_t*/ {
unsigned int entsize; // sizeof(struct _objc_method)
unsigned int method_count;
struct _objc_method method_list[1];
} _OBJC_$_CLASS_METHODS_Test __attribute__ ((used, section ("__DATA,__objc_const"))) = {
sizeof(_objc_method),
1,
{
{(struct objc_selector *)"testClassFunction", "v16@0:8", (void *)_C_Test_testClassFunction}}
};
代码中: _objc_method 的 method_type 被赋值了v16@0:8
这个 v16@0:8 就是 Type Encodings
他的每一个字符都有自己的含义, 用以描述函数的信息, 例如:
v: 返回值类型, 这里是void16: 所有参数的总字符数@: 第一个参数的类型, 这里是 id0: 第一个参数从第几位开始:: 第二个参数的类型, 这里是 SEL8: 第二个参数从第几位开始

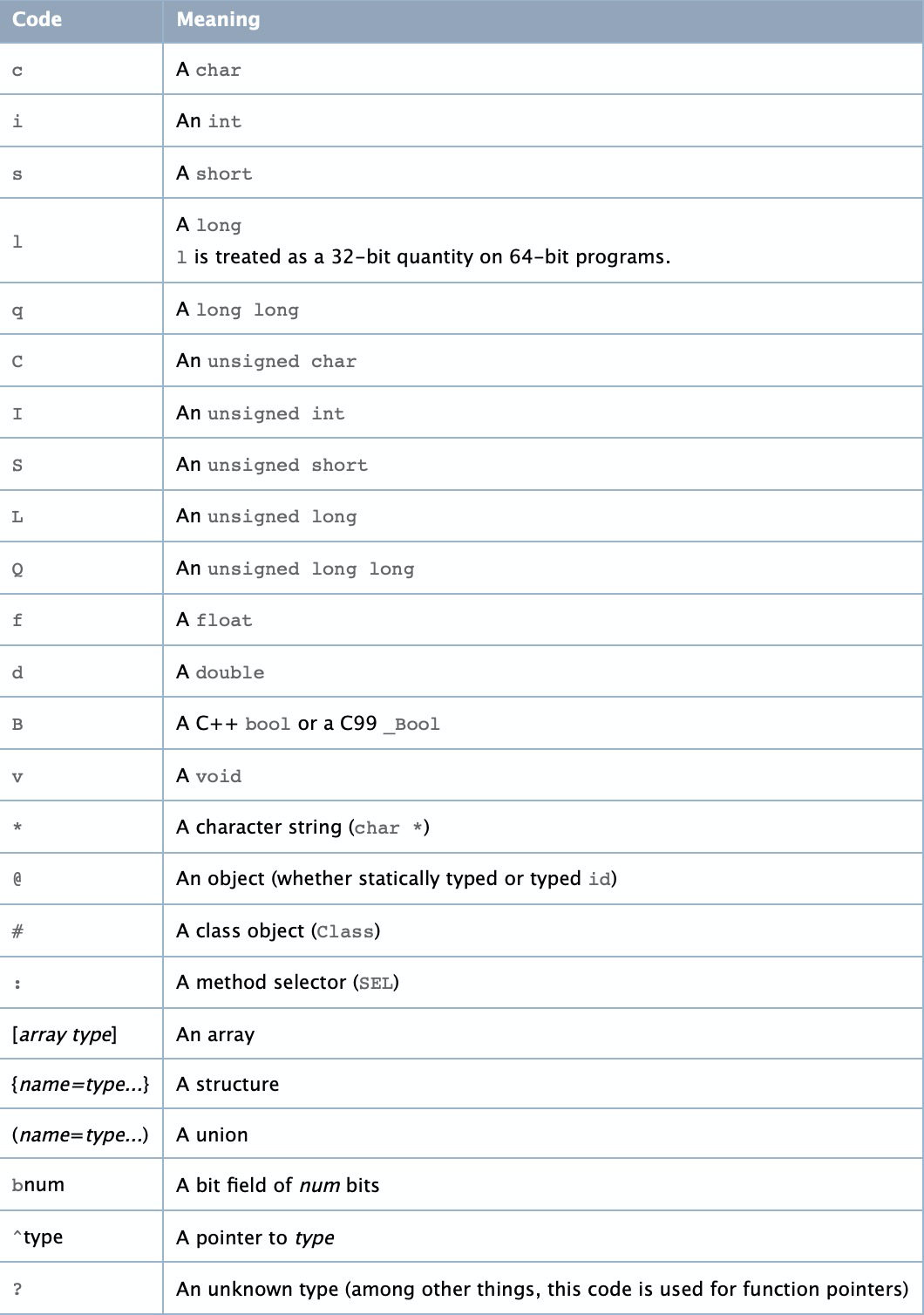

具体含义见官方文档: Type Encodings
